The grid of Military Topographic Maps at a 1:500,000 scale, Stereo 1970.
Map type: IndexProduct name: The grid of Military Topographic Maps at a 1:500,000 scale.
Technical details
The coordinate system in which they were created: The 1942 Coordinate System.
Projection: Stereo 1970
Format: shapefile
14
Number of sections
25
Maximum file size (MB)
Attribute table description
The attribute table contains the following fields:
| # | Field name | Description |
|---|---|---|
| 1 | Nume | denumirea secțiunii |
| 2 | Ediție | ediția foii de hartă |
Description / Method of acquisition

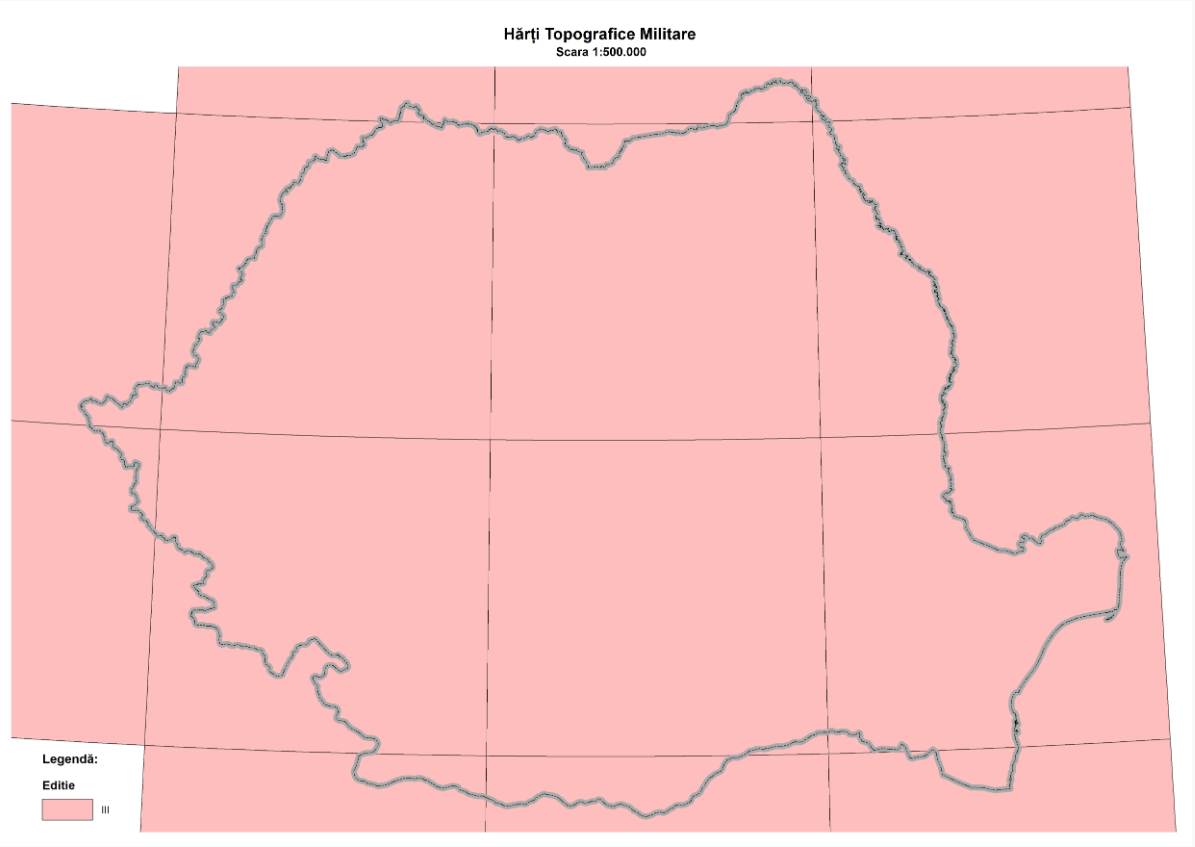

The grid contains the contours of the sections of military topographic maps at a 1:500,000 scale at the national level.
The grid was obtained by drawing geographic grid lines that divide the national territory into sections with sides of 2° latitude and 3° longitude on the Krasovsky ellipsoid.
Each map sheet is uniquely determined by nomenclature.
